MRA277 1 x 2.5” 15mm Internal Enclosure Tray Design
|
MRA277 is a 2.5” SATA 6.0Gbps HDD Enclosure converts 2.5” HDD into 3.5” Floppy space. Its metal material builds firm and strong structure beyond industrial level. With Wingsonic patented NSS connector and firm tray, it can be widely applied in IPC, Mini Server, Surveillance, and Security fields. |
 |
|
Firm and Strong body structure Out shell and tray use metal material to build high strength body, can work in high temperature environment and provide well heat-dissipation. |
 |
|
Thoughtful detail design Individual power switch in front can easy to manage the HDD. Mechanical lock keeps HDD working securely. LED indicator let users check working status any time. |
 |
 |
Strong, beautiful, and fashion aluminum handle. |
|
multicolor aluminum handle available
|
 |
|
Big capacity Perfectly support all SATA and SAS HDD/SSD, 7-15mm  |

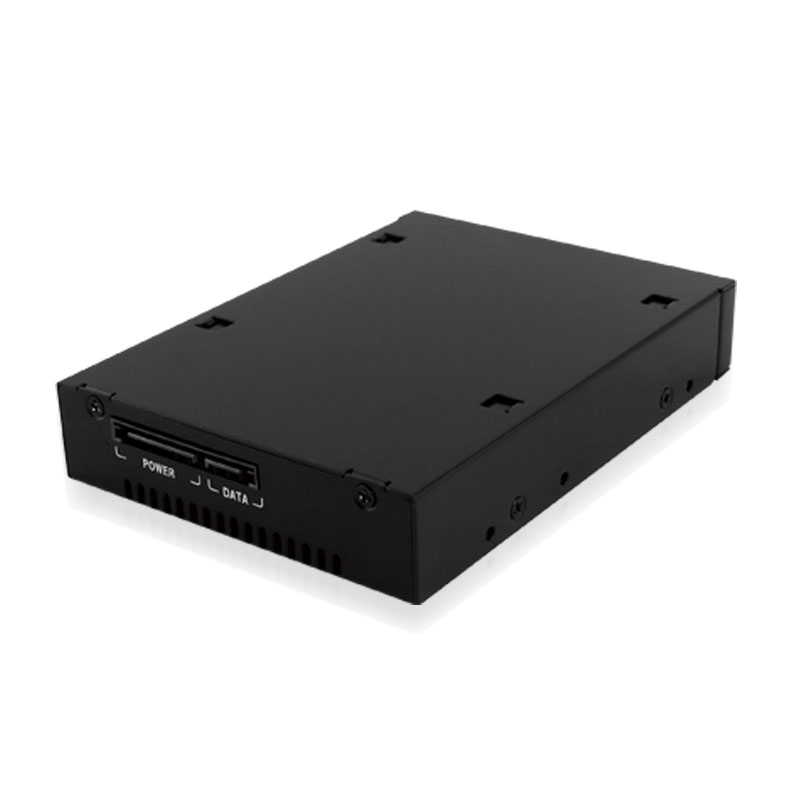

Product front/back view
Product specification
Product specification
| Model No. : | MRA277 | |
| Model Name： | 1 x 2.5" SATA/SAS 6.0Gbps HDD Enclosure | |
| Product Color : | Black Body + 5 colors tray handle available (black, silver, red, blue, gold) | |
| Type of HDD: | 2.5”SATA/SAS HDD/SSD | |
| Transmission Speed : | SATA III 6.0 Gb/sec. (Speed varies with the HDD) | |
| Assembly Space : | 1* 3.5" Floppy Space | |
| Interface : | SATA 7Pin | |
| Power Input : | 1* SATA 15Pin Power Interface | |
| Lock： | Yes | |
| LED Indicator : | Power(Green light); HDD power indicator(Blue light); Access(Red light blinking) | |
| RAID: | None | |
| Heat-dissipation system: | None | |
| Fan speed control : | None | |
| Malfunction alarm： | None | |
| Power and working environment | Voltage：5V DC | |
| Working Temperature: 0°~ 55°C | ||
| Storage Temperature: -20°~ 55°C | ||
| Relative Humidity：5% ~ 65% , noncondensing | ||
| Hot swap support : | Yes | |
| Operating System： | Any OS | |
| Material : | Aluminum, SECC, SUS430 stainless steel, PC | |
| Dimension (L*W*H) : | 141.8 * 101.2 * 25.4 mm | |
| Product Weight : | 420 g | |
| Packing： | 20pcs / carton | |
| Packaging Contents : | MRA277 | 1 |
| Manual | 1 | |
| Frame Screws | 6 | |
| HDD Screws | 4 | |
| SATA Cable | 1 | |
| Keys | 2 | |
