MRA503 3 x 3.5” Mobile Rack Trayless
|
Next-Generation storage solution
MRA503 is one of the series products that customized design for industrial-grade, professional-grade storage market. All-metal parts and intelligent temperature control design which provide more rigid quality and greater heat dissipation. With patented NSS connector supports 50,000 times hot swap and Tool-Free design. Suitable for personal professional workstations, industrial computers, machinery and equipment, military and other fields of storage products.
|
 |
 |
Ultra-rugged and High quality frame Aluminum outer case, hairline finish, durable and greater heat dissipation. Zinc Alloy door handle can bear over 20KG pull without broken and deformation. SUS430 ejection mechanism, SGCC back cover, Zinc Alloy hook, High-strength heat-resistant fire-rated PC, and aluminum track.  Strong zinc alloy door handle Metal parts percentage |
|
Supports 3 x 3.5" SATA HDD in
2 x 5.25" space. Maximum capacity up to 18TB (6TB*3) |
 |
|
Compatible with thicker and thinner HDD When the product needs to be used in upright position, thinner HDD might be move around since HDD is in upright position as well. Patent alignment mechanism make sure thinner HDD connected to backplane firmly. (Patent applied in many countries)  |
 |
 |
Excellent heat dissipation Set proper Airflow by vent of front bezel and space between HDDs, plus 60mm fan to enhance heat dissipation, control the HDD surface temperature does not exceed the environmental temperature of 15 degrees, let the HDD works in the normal temperature range any time. Intelligent temperature control system
When the internal temperature reaches 30 °C, the fan starts running, which extend fan life cycle. Fan speed will be adjusted automatically by the temperature change, fan spins at the highest speed when the temperature reaches 40 °C. (HIGH Mode : Fan spins at the highest speed when the temperature reaches 30 °C)
Dual alarm system: buzzer and LED for the fan failure or internal temperature exceeds the setting maximum temperature. |
|
Individual power switch Every single HDD corresponds to a power switch button, press the power switch button for 3 seconds to power on or off. Power on / off for all bays quickly One button can power on /off all bays sequentially. Time saving and avoid current increased dramatically. |
 |
|
Memorize function MRA503 will memorize previous working status of every HDD if it occurs sudden power failure during use. It will automatically restart and back to previous working status after restoring power. This feature is designed primarily for surveillance, servers and other equipment that required long time uninterrupe work. When the power failure occurs during use, after power restore, there's no need to restart MRA503 mamualy, it can automatically restart and back to previous working status to achieve unattended intelligent mode. |
 |
|
Compatible with SATA and SAS HDD  Support SAS primary data port only |
|
High Quality PCBA PCBA is designed by the requirement of high-frequency data transmission. Component and manufacturing process are used according to industry standard. PCB with 2.0mm four layers FR-4. |
 |
 |

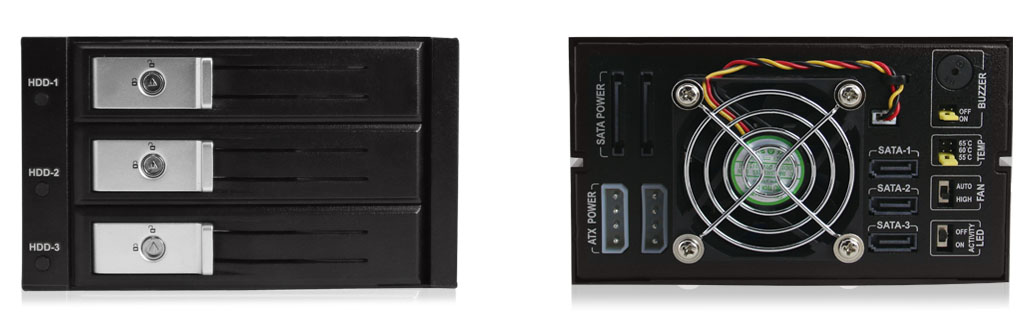

Product front/back view
Product specification
Product specification
| Model No. : | MRA503 |
| Model Name： | 3 x 3.5" SATA/SAS 6.0Gbps Internal Enclosure |
| Product Color : | Black frame + Silver door handle |
| Type of HDD: | 3 x 3.5”SATA/SAS HDD |
| Transmission Speed : | SATA III 6.0 Gb/sec. (Speed varies with the HDD) |
| Assembly Space : | 2 x 5.25”CD-ROM space |
| Interface : | 3 x SATA 7Pin |
| Power Input : | 2 x SATA15Pin + 2 x ATX 4Pin |
| Lock： | Yes |
| LED Indicator : |
Blue steady for power ; Blue blinking for access Orange blinking for fan failure, alternating orange and blue flashing Red blinking when temperature is above the setting, alternating red and blue flashing |
| RAID: | NA |
| Heat-dissipation system: | 60 x 60 x 15 mm DC 12V 3000 rpm ball bearing |
| Fan speed control : | AUTO / HIGH |
| Malfunction alarm： | Dual alarm system: buzzer and LED (for the fan failure or internal temperature exceeds the setting maximum temperature) |
| Power and working environment | Voltage: 12V + 5V DC |
| Working Temperature: 0°~ 55°C | |
| Storage Temperature: -20°~ 55°C | |
| Relative Humidity：5% ~ 65% | |
| Hot swap support : | Yes |
| Operating System： | Any OS |
| Material : | Aluminum, Alloy Zinc, SGCC, SUS430, PC |
| Dimension (L*W*H) : | 190.5 * 148 * 85.7 mm |
| Product Weight : | 1308 g |
| Packing： | 8pcs / carton |
| Packaging Contents : | MRA503 x 1 |
| Manual x 1 | |
| Frame screw x 8 | |
| SATA Cable x 3 | |
| Key x 2 |
