MRA258PCI  1 x 2.5” Mobile Rack Trayless


MRA258 PCI
1 x 2.5” Mobile Rack Trayless
*Without Lock


MRA258PCI is the first pioneer 2.5" storage taking space of PCI slot. Widely usage among mini case and IPC case users. It gives great safety, convenience and durability. It applies NSS (non-scratch)SATA connector, and guarantee 50,000 duty cycles. It gives no damage to Hard Drive, and your precious data will be well stored under such quick / easy hot-swap environment.





MRA258L PCI
1 x 2.5” Mobile Rack Trayless
*With lock






MRA258AL PCI
1 x 2.5” Mobile Rack Trayless
*Aluminum panel with lock







MRA258T PCI
1 x 2.5” Mobile Rack Trayless
*Without lock


New trayless design with wilder spring fits 5~7mm HDD

The wilder spring reduce the movement of the thinner HDD and make sure the thinner HDD connected to the backplane firmly. So the enclosure can be used in stand up vertical without any problems.




MRA258LT PCI
1 x 2.5” Mobile Rack Trayless
*With lock







MRA258ALT PCI
1 x 2.5” Mobile Rack Trayless
*Aluminum panel with lock





Easy, delicate and striking design but solid / durable structure
MRA258PCI is made with ABS plastic and stainless steel.
We use stainless steel rack to avoid the risk of plating process and rust problem after usage.
The mechanical has many ingenuities:
-Tool-less, Screw-less, and Tray-less structure.
-Patented design push bar, it connects to the door. And it gives very smooth feel while inserting and ejecting the HDD.
-Compatible to all brands of 9.5mm thickness 2.5" SATA/SSD HDD.
-Considerable and smart design to fully use the PCI space of chassis and enable one more HDD application.
-Heat ventilation holes with the HDD tray, gives HDD cooler working environment.
-Power on and HDD activity indicators, clearly tells HDD operation status.
-Gilding strip and plating button on the front door, gives striking look and quality taste.



  • Thumbnail 1
  • Thumbnail 1
  • Thumbnail 1
  • Thumbnail 1
  • Thumbnail 1
  • Thumbnail 1
  • Thumbnail 1
  • Thumbnail 1

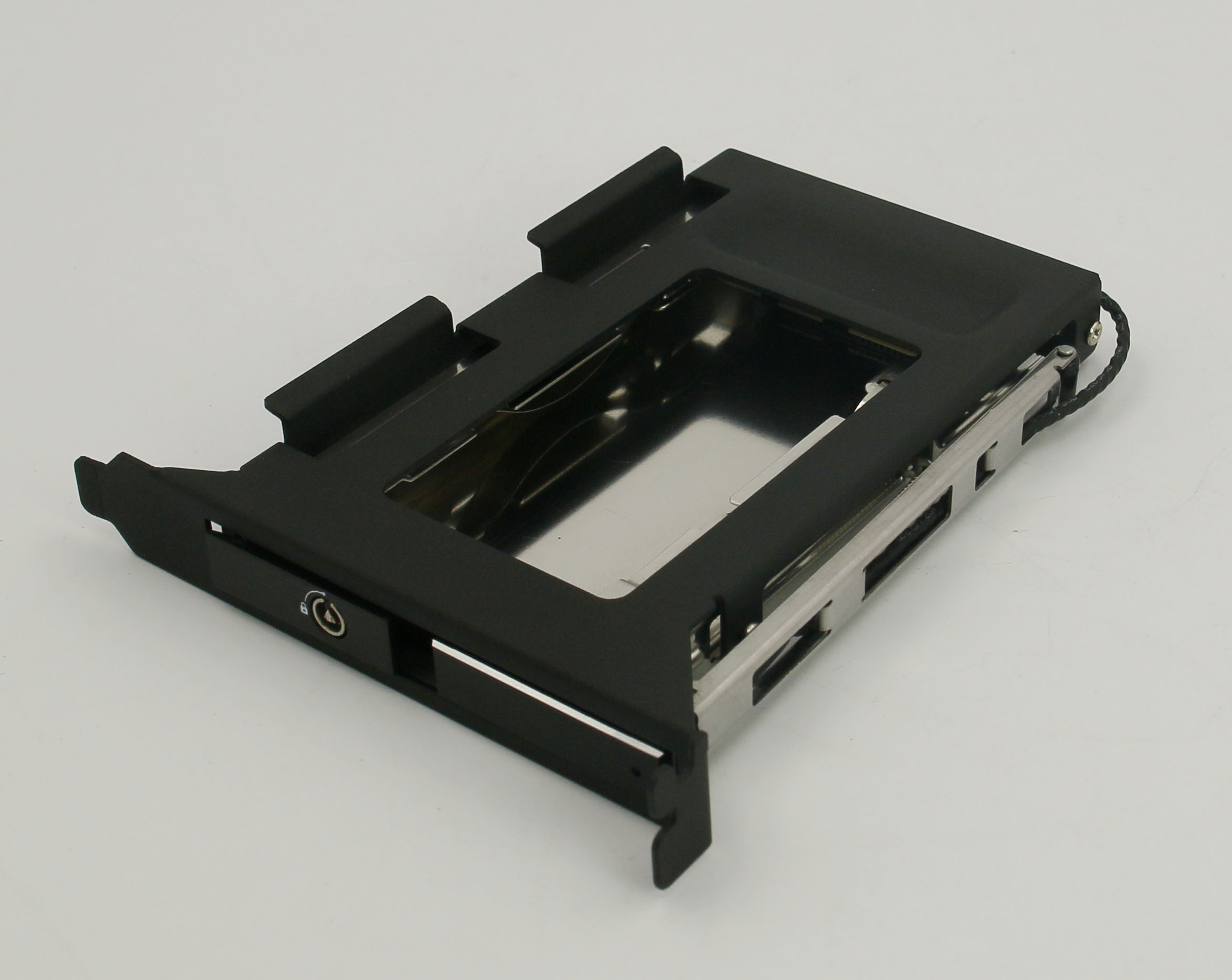

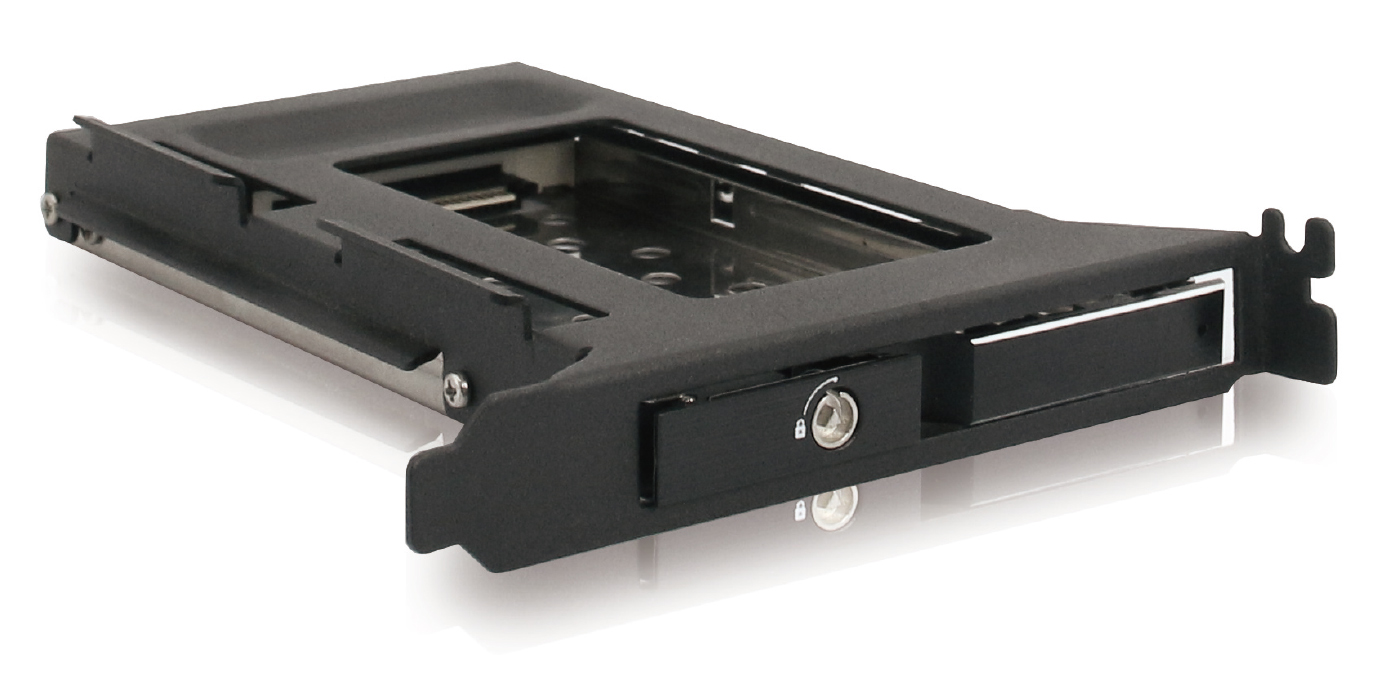

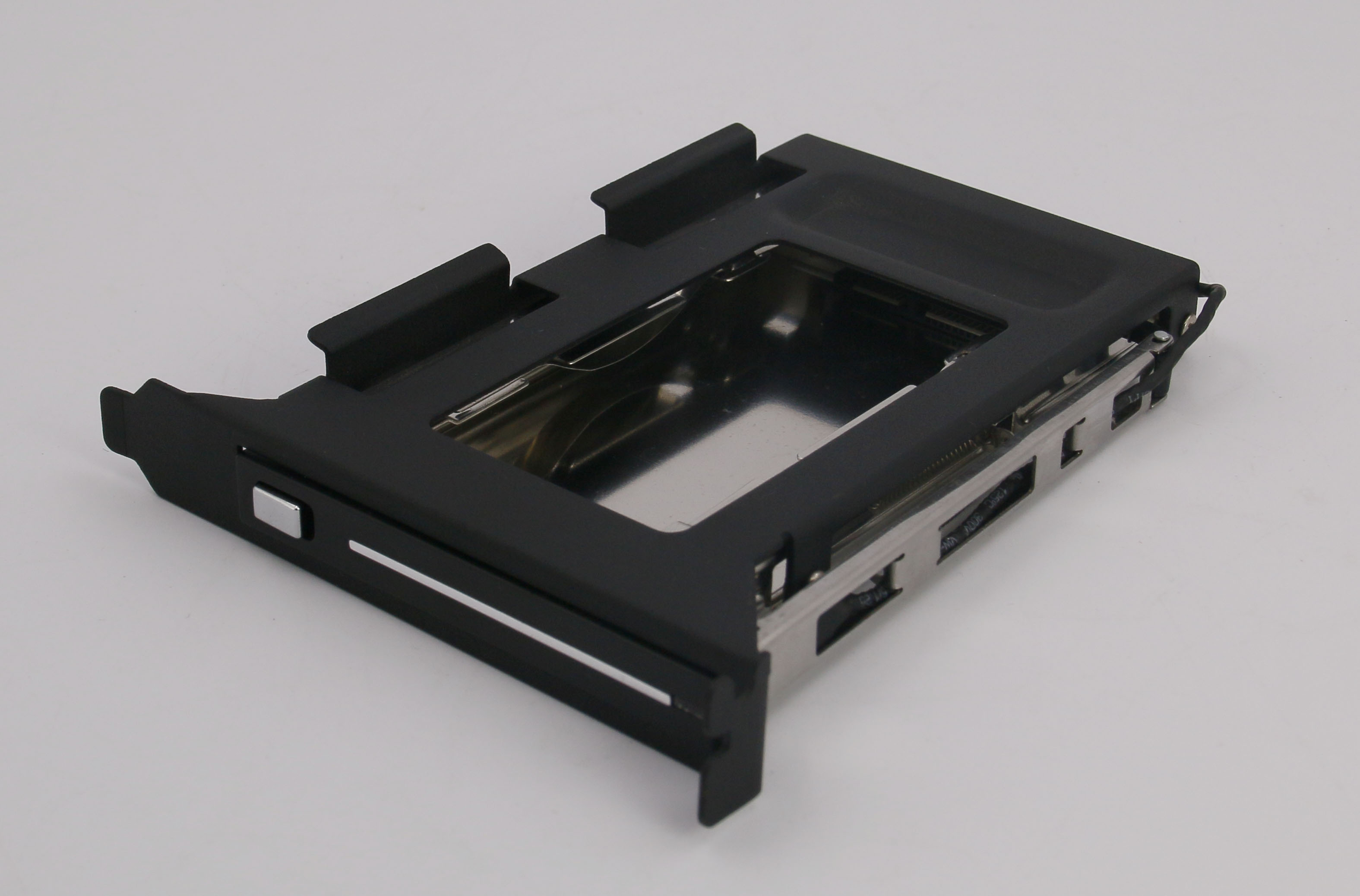

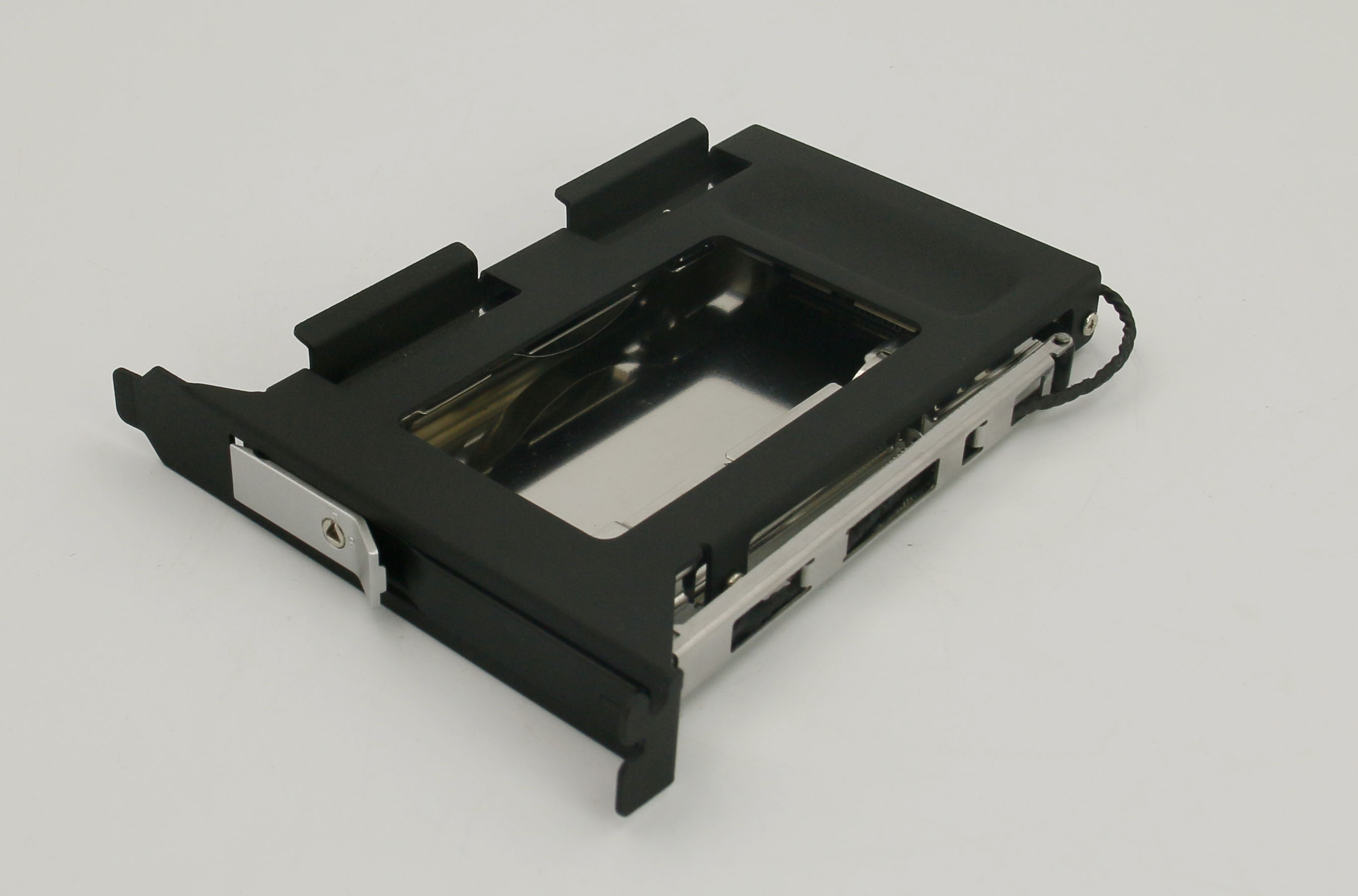

Product front/back view
Product specification

Model No. : MRA258PCI
Model name 2.5" SATA HDD Mobile Rack
Type of HDD 9.5mm thickness 2.5" SATA/SSD HDD
Product Color Black
Product Size (L)120 x (W)145 x (H)24 mm (Fits in IO/Slot of all PC chassis)
Material Plastic ABS & Stainless Steel
Hot Swappable Support
Swapping Guarantee Cycle Guarantee HDD hot swap cycle up to 50,000 times
Panel & Frame Satin Finish
LED Blue LED for power ; Orange LED for activity
Patent Power + LED cable Yes
Product weight 148 g
Working Environment 0 ~ 55°C
Operating System Windows / Mac
Accessory Screw x 1 ; SATA power cable ; SATA data cable; Manuel.
Application Computer storage
